ISO 12468-1 Roof External Fire Exposure Testing Machine for Building Materials

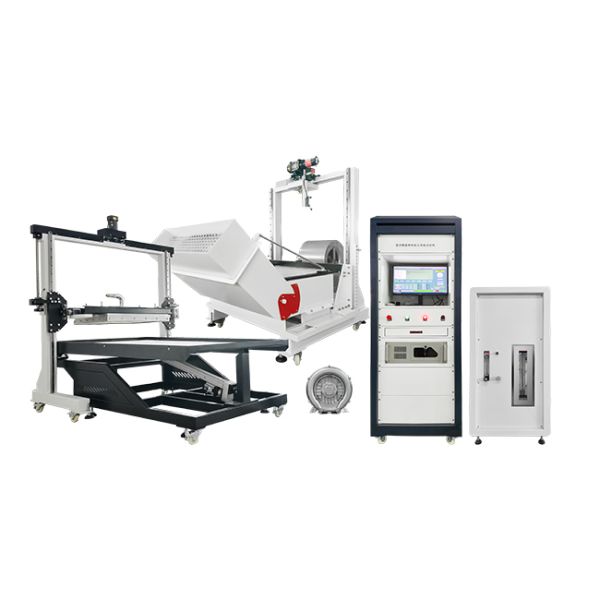

The Roof External Fire Exposure Tester is a precision testing device specifically designed to evaluate the fire resistance of roofing materials and systems under external fire conditions. It strictly complies with leading international standards including ISO 12468-1:2013, CEN/TS 1187:2012, ASTM E108, and EN 13501-5.
This equipment accurately tests flame propagation, penetration, and combustion behavior of roofing materials under real fire conditions by simulating various external fire source scenarios, including flame propagation, flame spread, wind-assisted flame, and radiant heat.
Compliance Standards
ISO 12468-1:2013 - External exposure of roofs to fire -- Part 1: Test method
CEN/TS 1187:2012 - Test methods for external fire exposure to roofs
DD ENV 1187:2002 - Test methods for external fire exposure to roofs
ASTM E108-20a - Standard Test Methods for Fire Tests of Roof Coverings
UL 790 Ed. 9-2022 - Standard Test Methods for Fire Tests of Roof Coverings
EN 13501-5:2016 - Fire classification using data from external fire exposure to roofs tests
Test Product Applications
Asphalt Shingles (Organic or Fiberglass Based)
Fiberglass Reinforced Asphalt Shingles
Wood Shakes
Wood Shingles
Clay Sheets (Flat or Curved)
Concrete Sheets
Slate Sheets (Natural or Synthetic)
Metal Roofing Sheets (Steel, Aluminum, Copper, or Zinc)
Built-Up Roofing Systems
Modified Bituminous Sheets (SBS or APP Polymer Modified)
Single-Layer Thermoplastic Polyolefin Sheets (TPO)
Single-Layer Ethylene Propylene Diene Monomer (EPDM) Sheets
Single-Layer Polyvinyl Chloride (PVC) Sheets
Liquid Coated Roofing (Acrylic, Silicone, or Polyurethane Based)
Green Vegetation Roofing Systems
Integrated Photovoltaic Roofing Panels
Foam Insulation Roofing Panels (Polystyrene or Polyisocyanurate Core)
Corrugated Fiber Cement Board
Thatch Roofing Materials (Straw or Reed Based)
Composite Roofing Panels (Polymer or Recycled Material Mixture)
Technical Parameters
| Parameter |
Specification |
| Test specimen rack structure |
Constructed from welded metal square tubing and angle steel |
| Test specimen rack angle adjustment |
Automatically adjustable to different angles |
| Test rack angle adjustment range |
0-50 degrees |
| Duct material |
SUS304 stainless steel, 2 mm thick |
| Fan |
Maximum fan speed of 15000 m³/h |
| Fan adjustment |
Variable frequency drive, automatically adjusted by computer. Power: 5.5KW |
| Air duct drive system |
Ball screw and servo motor drive |
| Adjustable angle range of air duct |
0-35 degrees |
| Wind speed measurement |
7 different positions on sample surface using anemometer |
| Anemometer accuracy |
0.1 m/s |
| Radiation plate dimensions |
(600±10) mm * (60±10) mm |
| Heat flux measurement range |
(0~50) KW/m², accuracy ±3% |
| Ignition device |
Support frame and igniter with gas burner |
| Flame temperature |
900℃ ± 50℃ at 60mm ± 5mm above burner |
| Additional equipment |
One set of woodpile fire gas combustion device; Two sets of video monitoring devices |
