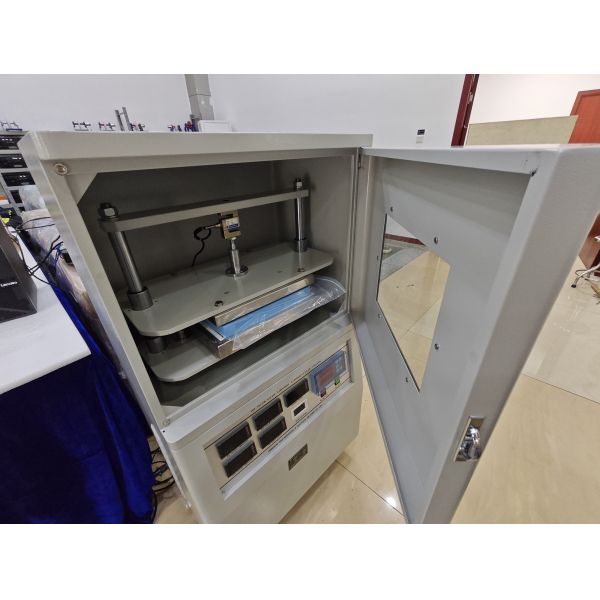

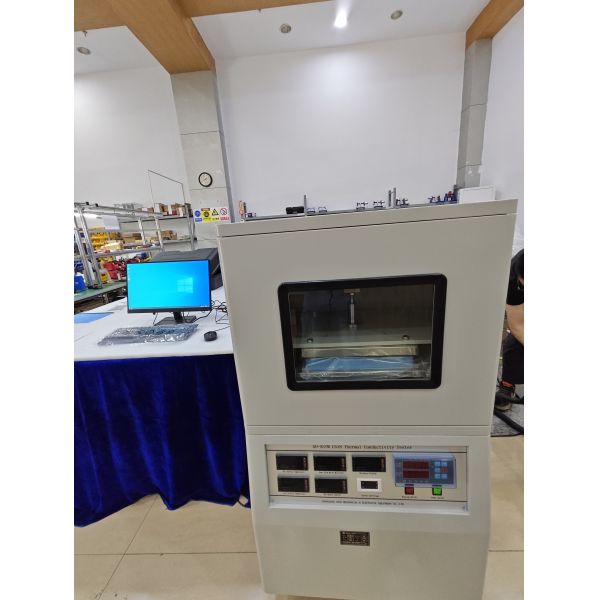

Insulation Materials ASTM C518 ASTM E1530 Thermal Conductivity Tester

Brand Name : GOLD

Model Number : GD-ASTM C518

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : USD9000-9500/set

Payment Terms : L/C,T/T,,MoneyGram

Supply Ability : 5sets per month

Delivery Time : 30 days

Packaging Details : Exported standard packaging

Product : ASTM C518 Thermal Conductivity Tester

Standard : ASTM E1530,ASTM C518,ISO 8301

Size : 550×450×1500mm

Measurement time : 15–20 min

Sample thickness : Automatic measurement 0～50mm

Temperature control accuracy : 0.1℃

Test materials : solid, powder

Pressure range : 0～1000N

Contact Now

Insulation Materials ASTM C518 ASTM E1530 Thermal Conductivity Tester
This advanced thermal conductivity testing instrument utilizes the internationally recognized heat flow meter method to accurately measure thermal conductivity and thermal resistance. The system features computer-aided automation for comprehensive testing and report generation.
Testing Principle
The instrument applies a stable hot surface temperature to one side of the sample. Heat transfers through the sample to the cold surface, and thermal conductivity/resistance values are calculated by measuring the transferred heat flow. With imported sensors and advanced computer technology, the system delivers high measurement accuracy, exceptional reliability, and excellent repeatability.
Compliance Standards
  • GB/T10295
  • ASTM E1530
  • ASTM C518
  • ISO 8301
Insulation Materials ASTM C518 ASTM E1530 Thermal Conductivity Tester
Technical Specifications
Thermal Conductivity Range 0.0001~1W/mk (accurate to 0.1mW/mk)
0.001~300W/mk (auto-ranging)
Measurement Accuracy 1%
Sample Size 50×50~150×150mm, 150×150~300×300mm (standard)
Custom sizes: 600×600mm, 800×600mm available
Sample Thickness Maximum 50mm
Material Compatibility Solid materials and powdered materials
Measurement Time 15-20 minutes
Hot Surface Temperature Room temperature~99.9°C (standard)
Options: Room temperature~299.9°C, Room temperature~499.9°C
Cold Surface Temperature 0~99.9°C (standard)
Options: -10~99.9°C, custom lower temperatures available
Sample Clamping Pressure 0~1000N, resolution 0.1N
Thickness Measurement 0~50mm, resolution 1μm
Power Supply 220V, 50Hz, 1KW
Insulation Materials ASTM C518 ASTM E1530 Thermal Conductivity Tester
Standard Configuration
  • One host machine
  • Analysis software (Chinese and English versions)
  • HX-1005 precision low-temperature constant temperature water tank (0.01°C accuracy)
  • Computer (user-selectable)
  • Standard sample
Dimensions & Weight
Main Unit 550 × 450 × 1500 mm, 100 kg
Precision Water Tank 300 × 350 × 530 mm, 35 kg
Technical Support
One-year warranty, long-term technical service, and free lifetime software upgrades.
Insulation Materials ASTM C518 ASTM E1530 Thermal Conductivity Tester
